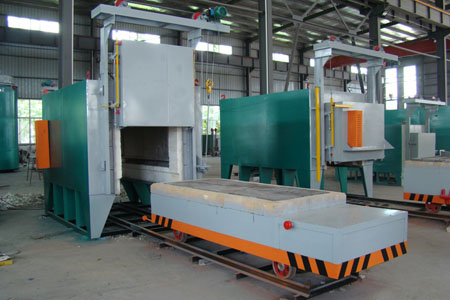

Aging Furnace: The Key Equipment for Optimizing the Performance of Metal Materials
In the metal materials processing industry, the aging furnace plays a pivotal role. By performing the aging treatment process, it optimizes the performance of metal materials, providing a solid guarantee for the manufacture of high-quality products.
The aging furnace can heat metal materials at a specific temperature and maintain them for a certain period. This promotes microstructural changes within the alloy, thereby significantly improving the mechanical properties of the material, such as hardness, strength, and wear resistance. For example, after aging treatment, the strength of aluminum alloy can be greatly enhanced.
For precision parts, dimensional stability is of utmost importance. Aging treatment can reduce the deformation of materials during subsequent use, ensuring that the dimensions of workpieces remain stable.
For some materials that require further processing, appropriate aging treatment can improve their machinability during cutting. The processing process becomes smoother, and at the same time, it can ensure the surface quality after processing.
The internal stress generated during the manufacturing process will affect the service life and performance of the material. The aging furnace helps to release this internal stress by precisely controlling the heating and cooling rates, reducing the risk of cracking or deformation of the material.
Different alloy materials and application scenarios have diverse requirements for aging treatment. The aging furnace can accurately adjust the temperature and time parameters according to specific needs to achieve the best treatment effect.
The working principle of the aging furnace is based on the aging treatment, a heat treatment process for metal materials. Its core is to change the microstructure inside the metal material by precisely controlling the heating and cooling processes, thereby improving the material performance.
The metal workpieces to be treated are placed in the aging furnace, and then the temperature inside the furnace is raised to a specific working temperature. This temperature depends on the type of metal material being treated and its alloy composition. For example, the aging treatment temperature of aluminum alloy is generally between 100°C and 200°C.
After reaching the required temperature, the workpiece needs to be maintained at this temperature for a certain period, which can range from a few minutes to several hours. During this period, a series of changes will occur inside the metal, such as atomic diffusion, the formation or growth of precipitation phases, etc. These changes help to enhance the mechanical properties of the material, such as hardness and strength.
After the holding time is over, the workpiece enters the cooling stage. The cooling rate may have an impact on the final material performance, so sometimes the cooling rate needs to be adjusted according to specific requirements. For some materials, natural cooling is sufficient, while in some cases, forced cooling methods may be required.
Throughout the entire process, the aging furnace provides an environment for precisely controlling the temperature and time, which plays a decisive role in ensuring the treatment effect. In this way, the aging furnace can effectively improve the physical and mechanical properties of metal materials, such as increasing hardness, improving strength, enhancing wear resistance, and reducing internal stress. This makes the metal materials after aging treatment suitable for manufacturing high-performance components and products.
The working temperature range of the aging furnace is mainly determined by the type of material to be treated and its specific heat treatment requirements. Different alloy materials require different temperature and time parameters during the aging treatment to achieve the best performance.
Generally, its aging treatment temperature range is approximately between 100°C and 200°C. Different types of aluminum alloys, such as the 2xxx series, 6xxx series, and 7xxx series, need to select specific temperatures within this range for treatment to optimize their mechanical properties.
For some special alloy steels or other metal materials, the aging treatment temperature may be different and sometimes higher, depending on the material composition and the expected effect to be achieved through the aging treatment.
In actual operation, the relevant material technical specifications or heat treatment guidelines should be referred to set the appropriate temperature and holding time to ensure that the material can obtain the desired physical and mechanical properties after aging treatment.
The determination of the aging treatment time depends on the material type, alloy composition, and expected performance goals. When different metal materials undergo aging treatment, the changes in their internal microstructure will directly affect the mechanical properties of the material, such as hardness and strength.
Each material has its specific optimal aging treatment conditions. For example, different series of aluminum alloys, such as the 2xxx, 6xxx, and 7xxx series, may have different optimal aging temperatures and times. Usually, manufacturers will also provide suggestions for the best heat treatment parameters of specific alloys.
For specific application scenarios, it may be necessary to determine the optimal aging treatment time and temperature through experiments. This includes conducting small-scale specimen tests, evaluating the material performance under different treatment conditions, and adjusting the parameters accordingly to achieve the optimal effect.
Many industries follow specific technical specifications or national standards to guide the heat treatment process. For example, the aerospace industry has strict standards for the aging treatment of aluminum alloy components to ensure that the material performance meets safety requirements.
In actual industrial production, in addition to paying attention to the material performance, the time cost of the aging treatment also needs to be considered. Excessively long aging treatment time will increase the production cycle and cost. Therefore, it is necessary to try to shorten the aging time while ensuring the material performance.
Sometimes, during the aging treatment process, it is necessary to dynamically adjust the treatment time and temperature according to the actual reaction of the material. For example, the method of segmented aging can be adopted, that is, treating at one temperature for a certain period and then changing the temperature to continue the treatment to obtain better comprehensive performance.
Determining the aging treatment time requires a comprehensive consideration of various factors such as material characteristics, expected performance goals, relevant technical specifications, and practical experience. For specific materials and application scenarios, it is best to refer to the manufacturer's guidelines or conduct special experimental research to determine the most appropriate aging treatment parameters.
The aging treatment time has a significant impact on the material performance, mainly achieved by changing the internal microstructure of the material.
For many alloys, such as aluminum alloys, as the aging treatment time increases, fine and uniformly distributed precipitation phases (mostly intermetallic compounds) will form inside the material. These precipitation phases can hinder the movement of dislocations, improving the hardness and strength of the material. However, if the aging time is too long, the precipitation phases will coarsen, reducing the strengthening effect instead.
Appropriate aging treatment can enhance the hardness and strength without significantly sacrificing the ductility. However, excessive aging (overaging) will make the material brittle, reducing its ductility and toughness. Excessive or oversized precipitation phases will become the starting point for crack propagation.
Aging treatment helps to stabilize the crystal structure of the material and reduce subsequent deformation during use. A longer aging treatment time usually provides better dimensional stability because it allows the internal stress of the material to be fully released and the precipitation phases to develop and stabilize fully.
In some cases, appropriate aging treatment can improve the corrosion resistance of the material. For example, in some aluminum alloys, the aging treatment promotes the formation of a protective oxide film. However, improper aging treatment, especially when the material is in an overaged state, may increase the local corrosion sensitivity.
The machinability of the material after aging treatment will be different. After moderate aging treatment, the material becomes harder but still maintains sufficient toughness for processing. Excessive aging, on the other hand, makes the material too hard and brittle, which is not conducive to further processing.
Selecting the appropriate aging treatment time is crucial and needs to be determined according to the alloy type, expected application requirements, and the final use environment of the material. Usually, a series of experimental tests are required to find the best combination of heat treatment parameters to obtain the required mechanical properties and physical characteristics.
Excessive aging treatment time, that is, overaging, will bring many negative impacts on the material performance and increase the usage risks.
Appropriate aging treatment can improve the hardness and strength of the material, but overaging will cause the precipitation phases to coarsen or aggregate, weakening their hindering effect on the movement of dislocations, resulting in a decrease in the hardness and strength of the material.
Overaging makes the material brittle and significantly reduces its ductility and toughness. The material is more likely to fracture when subjected to impact or tension, increasing the risk of failure in actual applications.
For some alloys, such as aluminum alloys, overaging may change the properties or thickness of the surface oxide layer, reducing its protective effect and making the material more susceptible to corrosion attacks.
Although aging treatment helps to stabilize the material dimensions, overaging may cause changes in the internal structure of the material, resulting in instability of shape or dimensions, which has a greater impact in high-precision application scenarios.
Overaging changes the internal microstructure of the material, which may accelerate the formation or propagation of microcracks, shortening the fatigue life of the material and making the material more prone to fatigue failure when subjected to periodic stress.
When conducting aging treatment, it is necessary to precisely control the treatment time and temperature to ensure that the desired material performance is achieved and avoid the above negative effects. Usually, it is necessary to determine the best aging treatment parameters according to the material type and expected use, referring to relevant technical specifications or through experiments.
The correct aging treatment parameters mainly include temperature and time, and their selection depends on the material type, alloy composition, and the expected performance goals. Determining these parameters requires considering the following aspects.
Different metals and their alloys have different requirements for aging treatment. For example, various series of aluminum alloys, such as the 2xxx, 6xxx, and 7xxx series, have different optimal aging temperatures and times. Other metals such as steel and copper alloys also have their own aging treatment specifications.
The goals of aging treatment are diverse, such as enhancing hardness, improving strength, improving wear resistance, increasing ductility or toughness, and enhancing corrosion resistance. Different goals require different aging treatment conditions. Some applications may focus on high strength, while others may pay more attention to machinability or corrosion resistance.
Many industries follow specific technical guidelines or national standards to guide the heat treatment process. The aerospace industry has strict standards for the aging treatment of aluminum alloy components to ensure that the material performance meets safety and quality requirements. Referring to relevant material technical manuals or industry standards can provide a reference for determining the aging treatment parameters.
For specific application scenarios, it may be necessary to optimize the aging treatment parameters through experiments. Conduct small-scale specimen tests, evaluate the material performance under different treatment conditions, and adjust the parameters accordingly to achieve the best effect.
In actual industrial production, in addition to pursuing the best material performance, the time cost and economic benefits of the aging treatment also need to be considered. Excessively long aging treatment time will increase the production cycle and cost, so it is necessary to try to shorten the aging time while ensuring the material performance.
The correct aging treatment parameters need to be determined according to the specific material characteristics and application requirements. Usually, it is necessary to refer to the manufacturer's guidelines or relevant technical specifications and combine experimental research to find the most suitable combination of aging treatment temperature and time to ensure that the material can obtain the desired physical and mechanical properties after aging treatment.
Rapid aging treatment usually refers to heat treatment at a relatively high temperature for a short time to strengthen the material. This method is suitable for alloys that can improve their performance through precipitation hardening. The following are some metals and alloys suitable for rapid aging treatment.
The 2xxx series (such as 2024), with copper as the main alloying element. The 6xxx series (such as 6061, 6082), containing magnesium and silicon. The 7xxx series (such as 7075), with zinc as the main added element, and may contain magnesium and copper.
Some copper-beryllium (Cu-Be) or copper-nickel-silicon (Cu-Ni-Si) alloys can improve their strength and hardness through aging treatment.
This type of steel adds a small amount of elements such as cobalt, molybdenum, and titanium. Aging treatment at a relatively low temperature can form ultra-fine precipitation phases, significantly increasing the strength without losing too much toughness.
Such as the widely used Ti-6Al-4V, a titanium alloy, can enhance its mechanical properties through aging treatment.
Like the A286 alloy mentioned before, this type of alloy is usually used in high-temperature environments. Through appropriate aging treatment, excellent high-temperature strength and corrosion resistance can be obtained.
For the above alloys, the key to rapid aging treatment is to find the appropriate combination of temperature and time to quickly obtain the desired strengthening effect without damaging other properties of the material. Different alloys need to determine the best aging treatment parameters according to their specific chemical composition, microstructure, and final use. In addition, with the development of technology, new rapid aging treatment methods are constantly being studied and developed, such as using emerging technologies like rapid solidification technology and laser cladding technology to further optimize the performance of these alloys.
